#87693538 Spout Bottom Wear Plate
#87693538 Spout Bottom Wear Plate
Couldn't load pickup availability

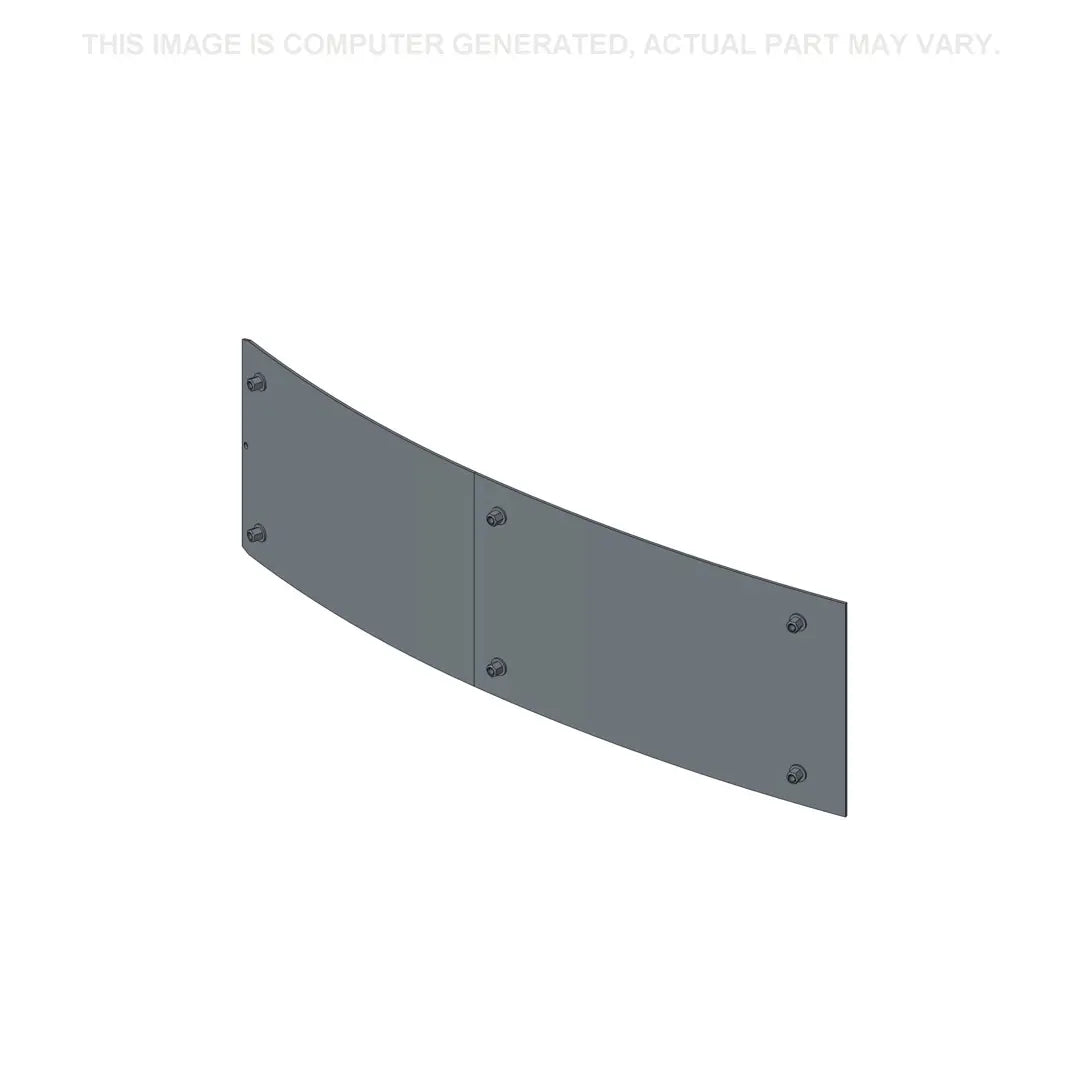

Spout Bottom Wear Plate (Standard)
Part #: 87693538
Quantity Needed: 1 wear plate
You May Also Need: One of each of these wear plates - 47576160, 47460788
Need two of these wear plates - 47498438, 47462804
| Part # | Description | Quantity |
| 300383 | Hex Bolt, M10 x 1.5 x 16mm | 24 |
| 140045 | Belleville Lock Washer |
12 |
| 308761 | Carriage Bolt, M8 x 1.25 x 25mm | 1 |
| 86507486 | Carriage Bolt, M8 x 1.25 thread and 20 mm | 47 |
| 322358 | Belleville Lock Washer, M8 Bolt Size x 18mm OD x 1.4mm | 42 |
| 43362 | Hex Nut, M8 x 1.25 | 48 |
| 412650 | Belleville Washer, M8 Bolt Size x 22 mm OD x 1.4 mm | 6 |
Part Description:
Durable wear plate engineered for the bottom section of the crop spout. Constructed from high-strength, wear-resistant steel to withstand heavy abrasion from high-volume crop flow. Precision dimensions ensure proper fit and optimal performance, extending service life in demanding forage harvesting conditions.
Compatible with:
FR450 A3, FR450 A4, FR450 I3, FR480 A4, FR480 A5, FR480 A5., FR480 E5, FR480 K4, FR500 A3, FR500 A4, FR500 I3, FR550 A4, FR550 A5, FR550 A5., FR550 E5, FR550 K4, FR600 A3, FR650 A4, FR650 A5, FR650 A5., FR650 E2, FR650 E5, FR700 A3, FR780 A4, FR780 A5, FR780 A5., FR780 E2, FR780 E5, FR850 A2, FR850 A2 – TIER 2 (NA), FR9040, FR9050, FR9060, FR9080, FR9090, FR920 A4B, FR920 A5, FR920 A5., FR920 E5
