#87658103 Knife
#87658103 Knife
Couldn't load pickup availability
Knife
Part #: 87658103
Quantity Needed: 4 per drum
You May Also Need: Clockwise Knives - Need 4 per drum 87658101, Need 2 per drum 87657566
Hardware:
| Part # | Description | Quantity |
| 43140 | Hex Bolt, M10 x 1.5 x 30 | 2 |
| 140045 | Belleville Lock Washer |
4 |
| 100037 | Lock Nut, M10 x 1.5 | 2 |
| 43128 | Hex Bolt, M8 x 1.25 x 30mm | 2 |
| 84213198 | Washer | 4 |
| 120104 | Hex bolt full thread, M8 x 20 mm | 30 |
| 322358 | Belleville Lock Washer, M8 Bolt Size x 18mm OD x 1.4mm | 30 |
| 86629542 | Hex Lock Nut, M8 x 1.25 | 32 |
| 87658105 | Plate | 8 |
| *92286750 | Service Kit |
* Kit includes all the clockwise and counter clockwise parts, and double the amount of hardware listed above.
• 900 BFI has 6 big drums
• 750/600 has 4 big drums

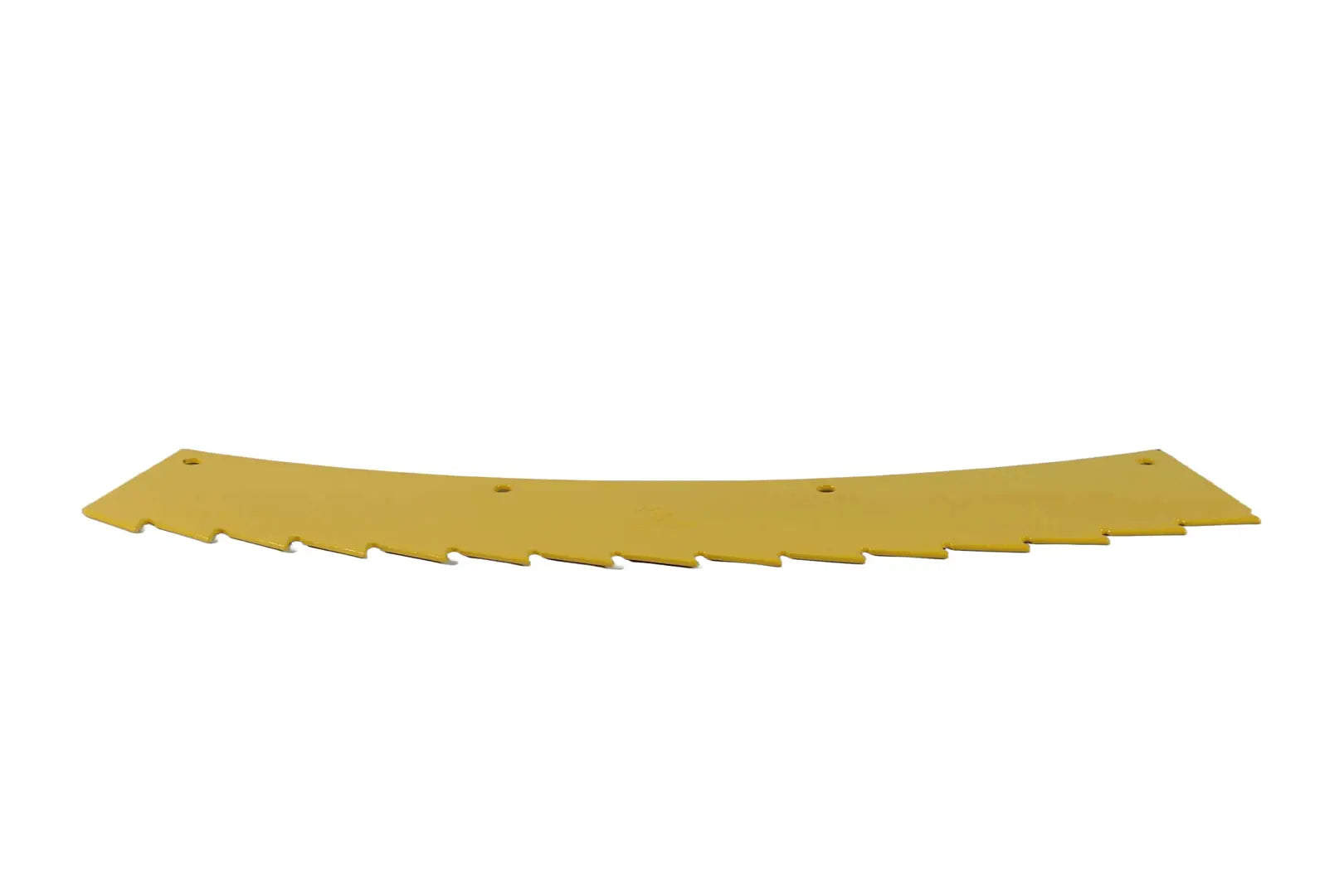

Part Description: High-quality left-hand (LH) knife designed for use in New Holland forage harvester headers. This knife is coated in yellow, has a thickness of 2.5 mm, and rotates counter-clockwise, ensuring precise and efficient cutting of crops during harvesting operations.
Compatible with:
430FIA, 450BFIA, 450BFIE, 450FIA, 450FIA PLUS, 450SFIA, 450SFIA Pro, 450SFIE, 450SFIE Pro, 480FIA, 600BFIA, 600BFIA PRO, 600BFIE, 600BFIE Pro, 600BFSE, 600SFIA, 600SFIE, 600SFIE Pro, 750BFIA, 750BFIA PRO, 750BFIE, 750BFIE Pro, 750BFIN, 750BFIU, 750SFIA, 750SFIE, 750SFIE Pro, 900BFIA, 900BFIA PRO, 900BFIE, 900BFIE Pro, 900SFIA, 900SFIA Pro, 900SFIE, 900SFIE Pro
