#84435047 Quick Female Hybrid Coupling

#84435047 Quick Female Hybrid Coupling

Regular price $42.05 USD
Regular price Sale price $42.05 USD
Sale Sold out
Shipping calculated at checkout.

Quick Female Hybrid Coupling

Part #: 84435047

Replaces Part #: 87433417, 87589352

Part Description:

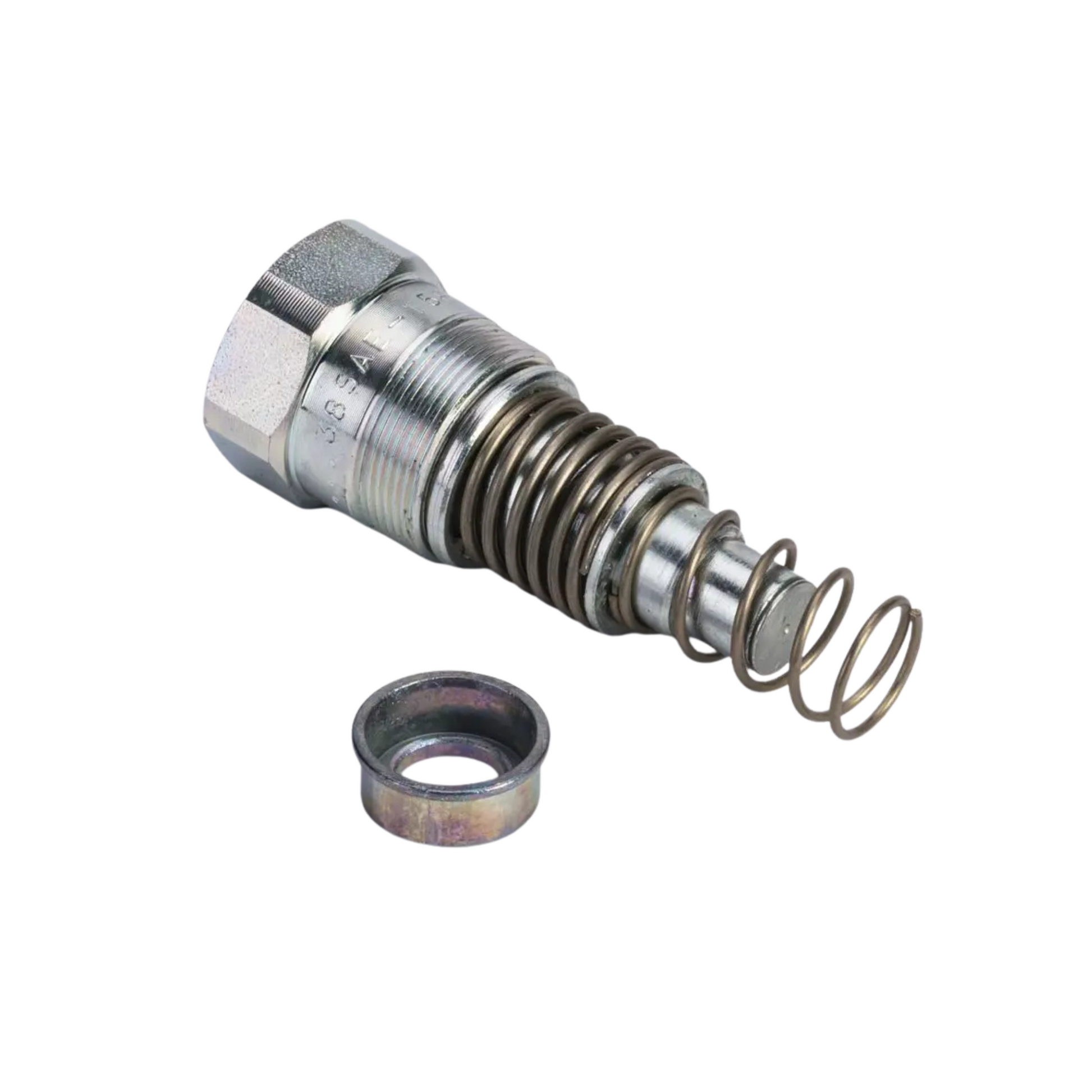

A quick-release hydraulic female coupling for combines and header units. Constructed from steel, it features a thread of M22×1 (female) with an M24×1.5 internal pilot and spring retaining mechanism. Measures ~78 mm in length and 22 mm outer diameter, weighing approximately 0.116 kg.

Compatible with:
FR450 A3, FR450 A4, FR450 I3, FR480 A4, FR480 A5, FR480 A5., FR480 E5, FR480 K4, FR500 A3, FR500 A4, FR500 I3, FR550 A4, FR550 A5, FR550 A5., FR550 E5, FR550 K4, FR600 A3, FR650 A4, FR650 A5, FR650 A5., FR650 E2, FR650 E5, FR700 A3, FR780 A4, FR780 A5, FR780 A5., FR780 E2, FR780 E5, FR850 A2, FR850 A2, FR9040, FR9050, FR9060, FR9080, FR9090, FR920 A4B, FR920 A5, FR920 A5., FR920 E5
