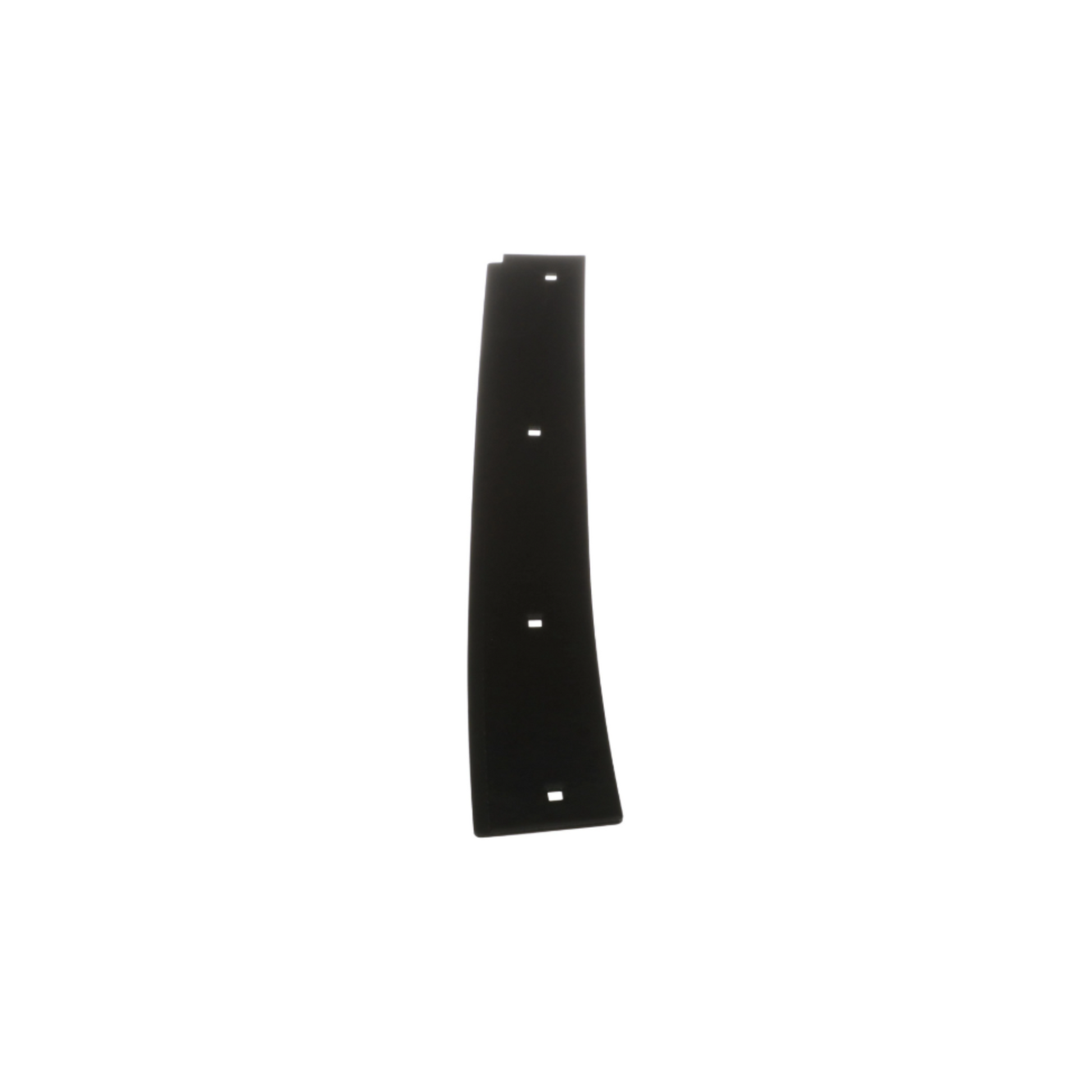

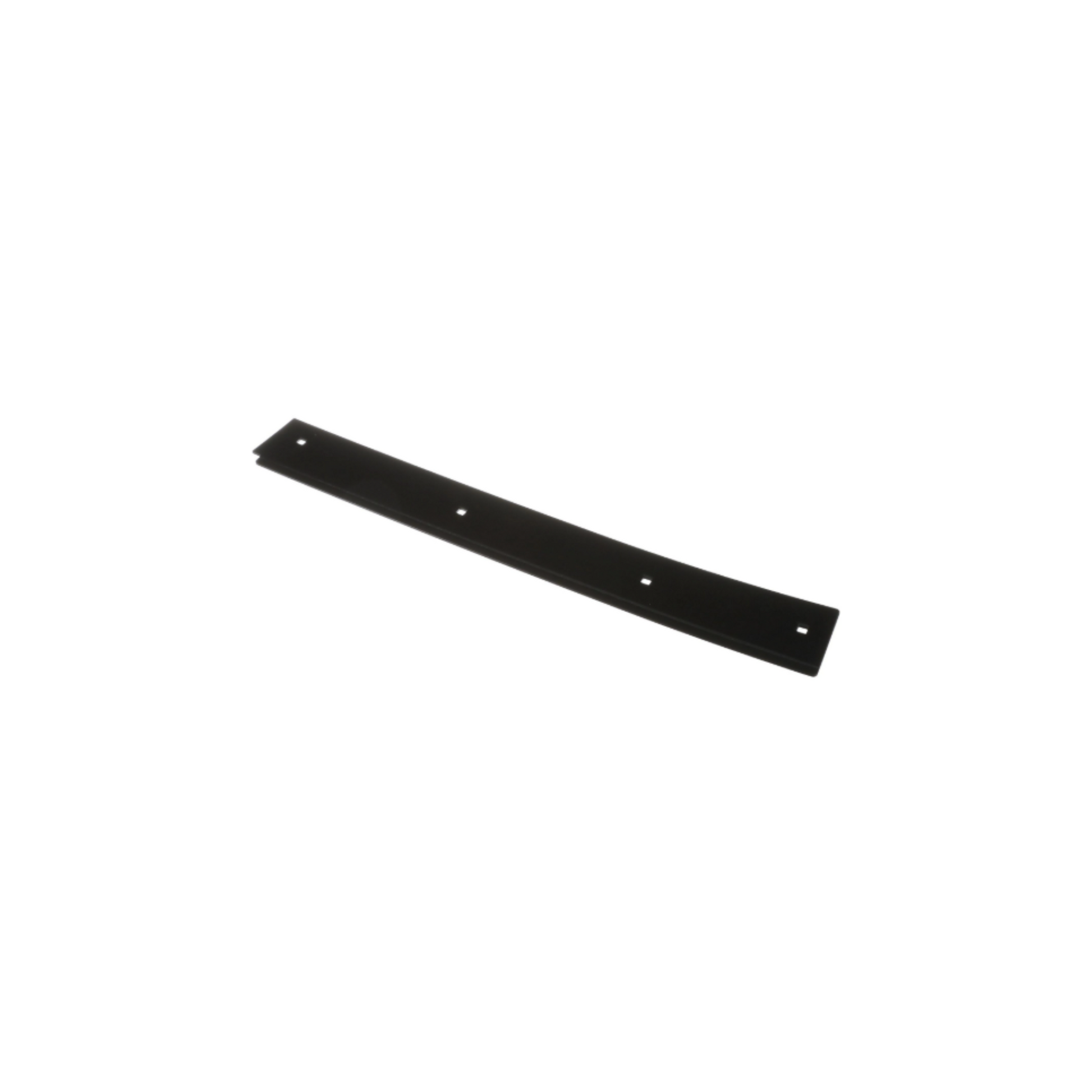

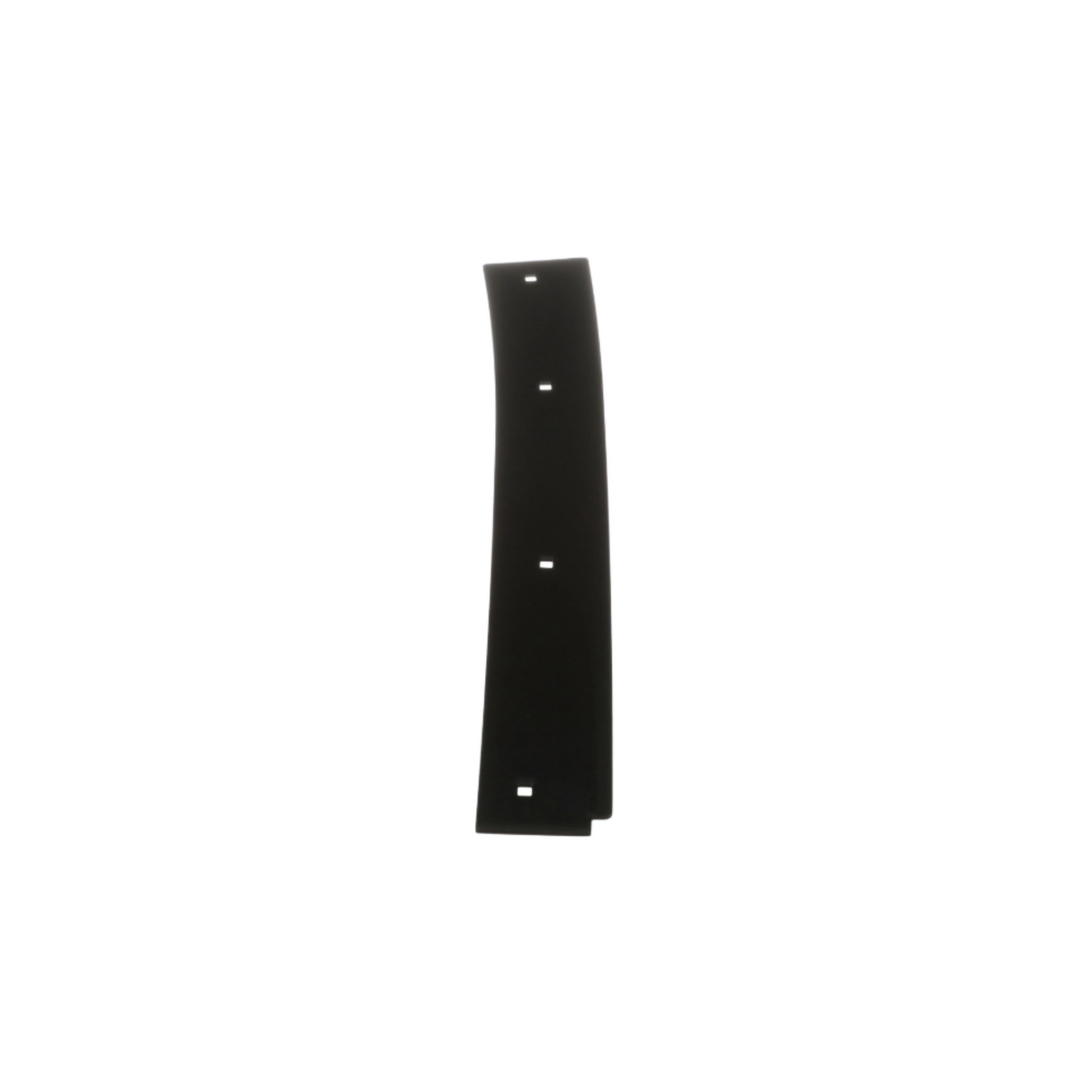

Wear Plate (Heavy Duty)
Part #: 47526302
Quantity Needed: 1 wear plate
You May Also Need: One of each of these wear plates
+47527600, +47576160, 47460788, 47462804 (need 2), 47525851, 47525864, 47525871, 47526286, 47526294, *90330071, *47576175
* Need if you have a moisture sensor
+ Need if you do not have a moisture sensor
Hardware Needed:
| Part # | Description | Quantity |
| 300383 | Hex Bolt, M10 x 1.5 x 16mm | 24 |
| 140045 | Belleville Lock Washer |
12 |
| 308761 | Carriage Bolt, M8 x 1.25 x 25mm | 1 |
| 86507486 | Carriage Bolt, M8 x 1.25 thread and 20 mm | 47 |
| 322358 | Belleville Lock Washer, M8 Bolt Size x 18mm OD x 1.4mm | 42 |
| 43362 | Hex Nut, M8 x 1.25 | 48 |
| 412650 | Belleville Washer, M8 Bolt Size x 22 mm OD x 1.4 mm | 6 |
Part Description:
Durable wear plate engineered to protect forage harvester components from abrasion and material flow. With dimensions of 657.8 mm in length, 96.68 mm in width, and 3 mm in thickness, this plate is designed to extend service life by minimizing wear on high-contact surfaces. Built from hardened steel to withstand continuous heavy-duty operation in demanding harvesting conditions.
Compatible with:
FR450 I3, FR480 A4, FR480 A5, FR480 A5., FR480 E5, FR480 K4, FR500 I3, FR550 A4, FR550 A5, FR550 A5., FR550 E5, FR550 K4, FR650 A4, FR650 A5, FR650 A5., FR650 E2, FR650 E5, FR780 A4, FR780 A5, FR780 A5., FR780 E2, FR780 E5, FR850 A2 - Tier 2 (NA), FR920 A4B, FR920 A5, FR920 A5., FR920 E5
