#47498438 Wear Plate
#47498438 Wear Plate
Couldn't load pickup availability

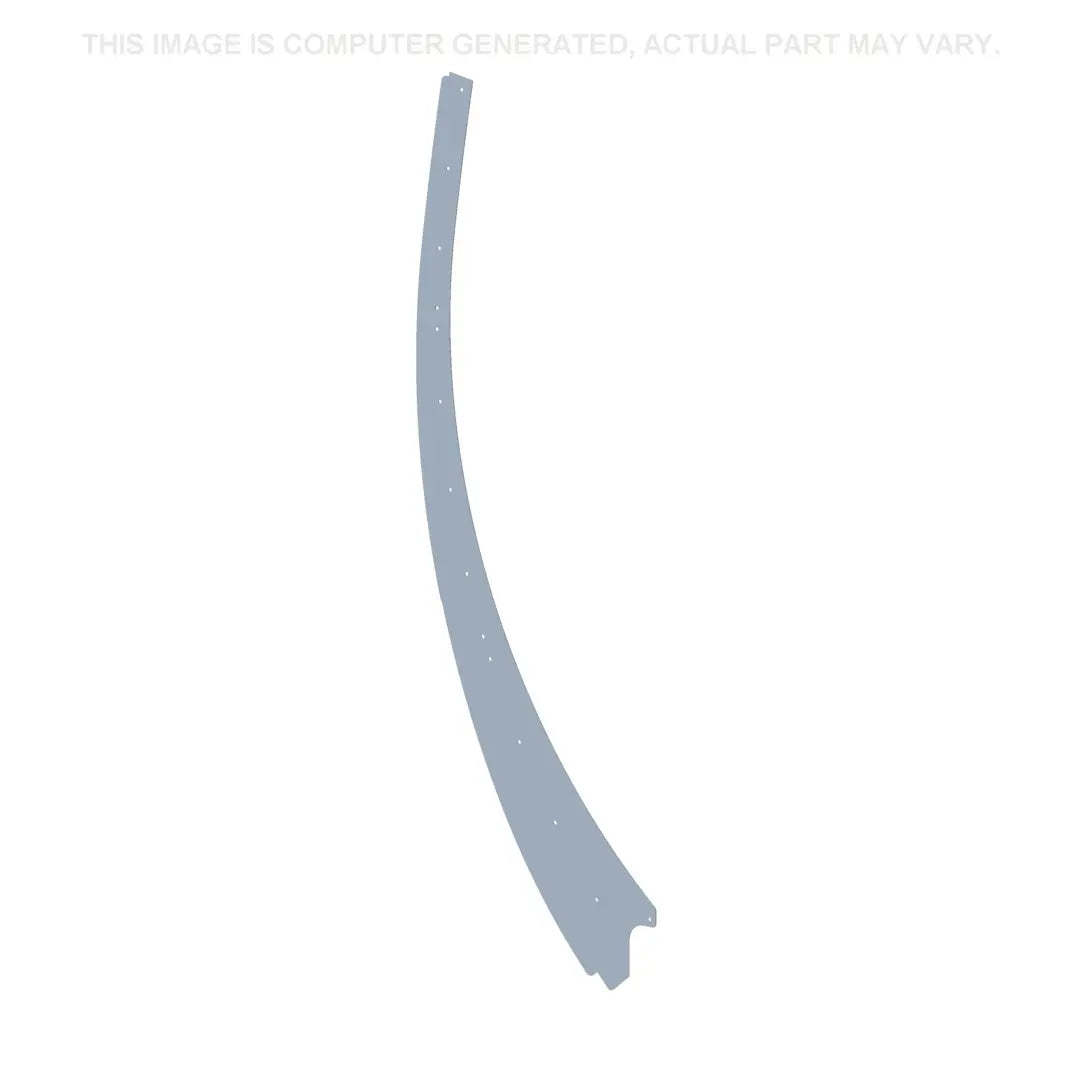

Wear Plate (Standard)
Part #: 47498438
Quantity Needed: 2 wear plates
You May Also Need: One of each of these wear plates
+47576160, +87695538, 47460788, 47462804 need 2, *47576175, *90330071
* Need if you have a moisture sensor
+ Need if you do not have a moisture sensor
| Part # | Description | Quantity |
| 300383 | Hex Bolt, M10 x 1.5 x 16mm | 24 |
| 140045 | Belleville Lock Washer |
12 |
| 308761 | Carriage Bolt, M8 x 1.25 x 25mm | 1 |
| 86507486 | Carriage Bolt, M8 x 1.25 thread and 20 mm | 47 |
| 322358 | Belleville Lock Washer, M8 Bolt Size x 18mm OD x 1.4mm | 42 |
| 43362 | Hex Nut, M8 x 1.25 | 48 |
| 412650 | Belleville Washer, M8 Bolt Size x 22 mm OD x 1.4 mm | 6 |
Part Description:
Durable wear plate designed to protect forage harvester components from abrasion and material wear. Engineered for extended service life in high-friction, high-impact applications, helping reduce downtime and maintenance costs.
Compatible with:
FR450 I3, FR480 A4, FR480 A5, FR480 A5., FR480 E5, FR480 K4, FR500 I3, FR550 A4, FR550 A5, FR550 A5., FR550 E5, FR550 K4, FR650 A4, FR650 A5, FR650 A5., FR650 E2, FR650 E5, FR780 A4, FR780 A5, FR780 A5., FR780 E2, FR780 E5, FR850 A2, FR920 A4B, FR920 A5, FR920 A5., FR920 E5
