#47462804 Wear Plate
#47462804 Wear Plate
Couldn't load pickup availability

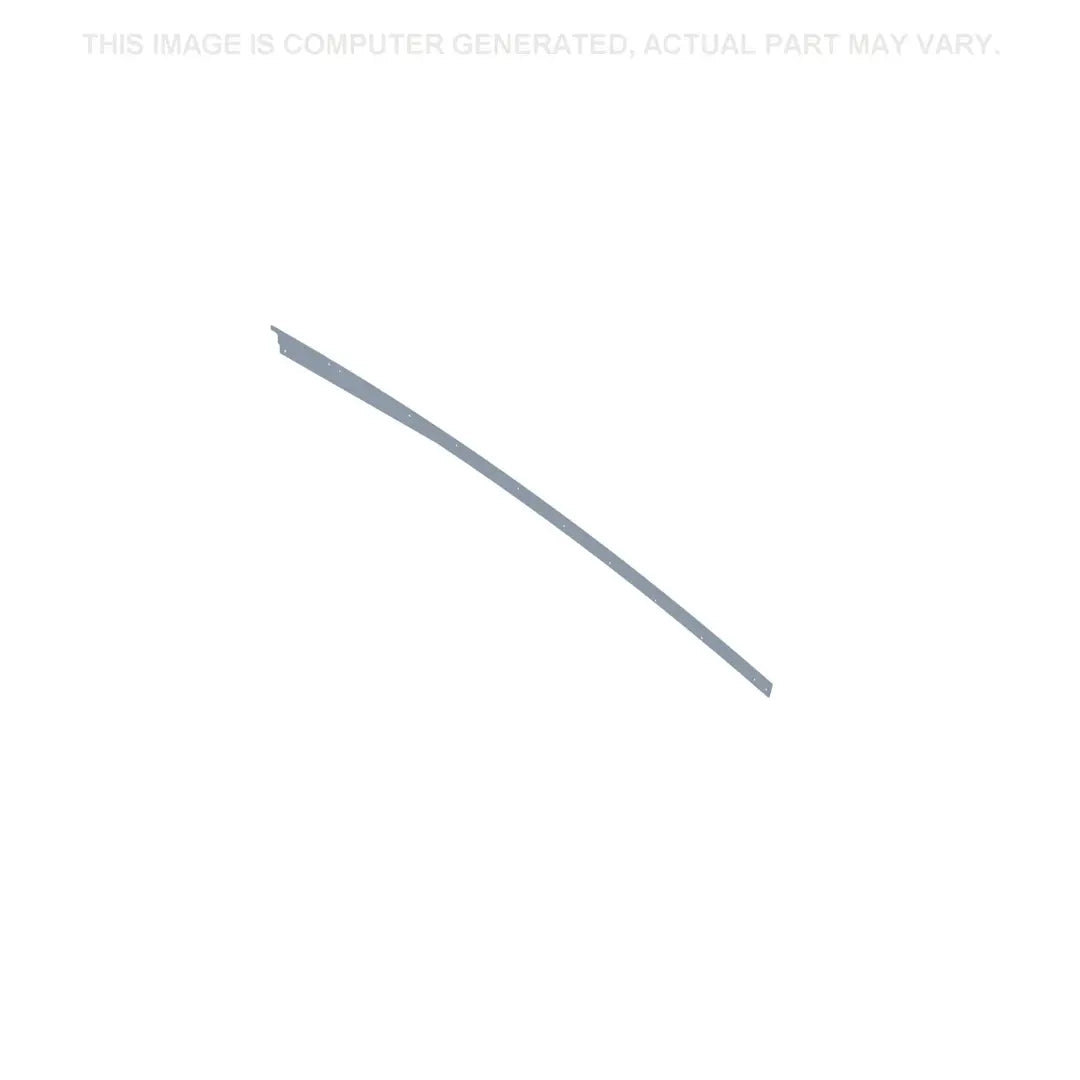

Wear Plate
Part #: 47462804
Quantity Needed: 2 wear plates
You May Also Need: One of each of these wear plates
47527600, 47576160, 47460788, 47525851, 47525864, 47525871, 47526286, 47526294, 47526302, *90330071, *47576175
* Need if you have a moisture sensor
| Part # | Description | Quantity |
| 300383 | Hex Bolt, M10 x 1.5 x 16mm | 24 |
| 140045 | Belleville Lock Washer |
12 |
| 308761 | Carriage Bolt, M8 x 1.25 x 25mm | 1 |
| 86507486 | Carriage Bolt, M8 x 1.25 thread and 20 mm | 47 |
| 322358 | Belleville Lock Washer, M8 Bolt Size x 18mm OD x 1.4mm | 42 |
| 43362 | Hex Nut, M8 x 1.25 | 48 |
| 412650 | Belleville Washer, M8 Bolt Size x 22 mm OD x 1.4 mm | 6 |
Part Description:
Heavy-duty wear plate engineered for forage harvester assemblies. Designed to protect adjacent machine surfaces from abrasion, impact, and material buildup, extending operational life and reducing maintenance needs.
Compatible with:
FR450 I3, FR480 A4, FR480 A5, FR480 A5., FR480 E5, FR480 K4, FR500 I3, FR550 A4, FR550 A5, FR550 A5., FR550 E5, FR550 K4, FR650 A4, FR650 A5, FR650 A5., FR650 E2, FR650 E5, FR780 A4, FR780 A5, FR780 A5., FR780 E2, FR780 E5, FR850 A2 (Tier 2 NA), FR920 A4B, FR920 A5, FR920 A5., FR920 E5
